Andy Raymond's Ampico "B" Valve Blocks - PAGE 5

---

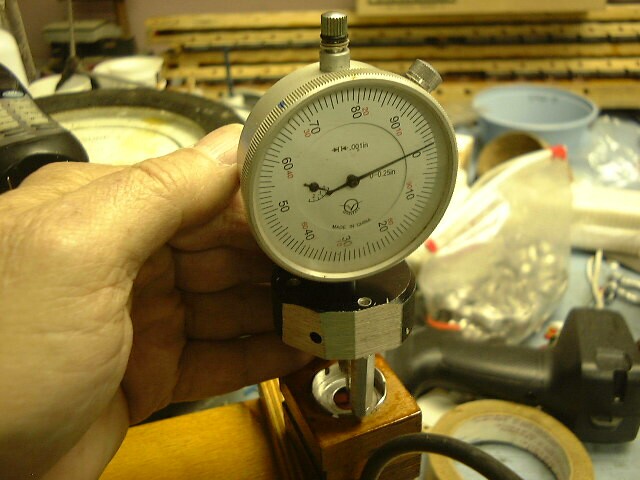

Modified Dial Micrometer set to "0" to measure valve travel.  Pouch is inflated by slight pressure
from mouth being applied to rubber tubing on nipple of the valve block.

---

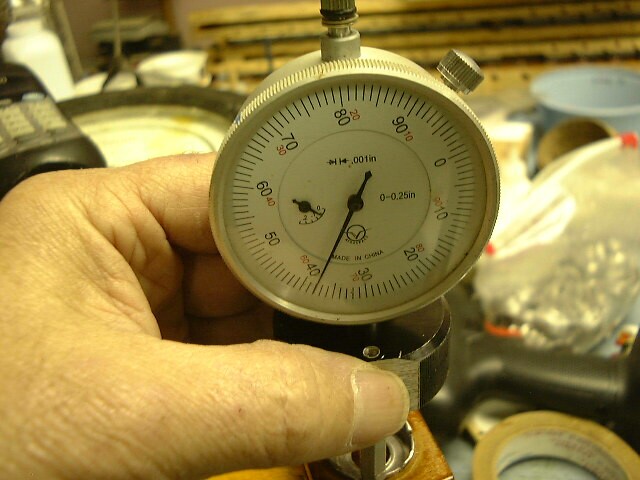

Valve Clearance now measures appox. .038 inch.  This is accomplished by resetting the adjustment
on the tool and remeasuring until the proper clearance is obtained.

---

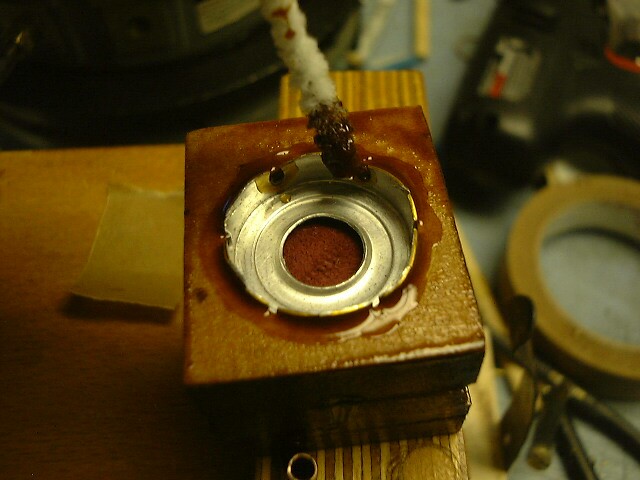

After proper clearance is obtained, and valve has been tested on test stand, the top valve seat is sealed.

---

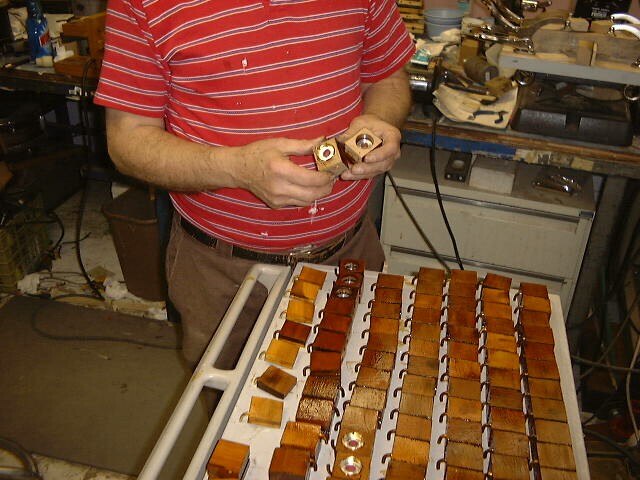

There IS an end to this somewhere.....I Think!.

---

---
