Andy Raymond's Ampico "B" Valve Blocks - PAGE 4

---

Upper and Lower parts ready to be glued together and clamped

---

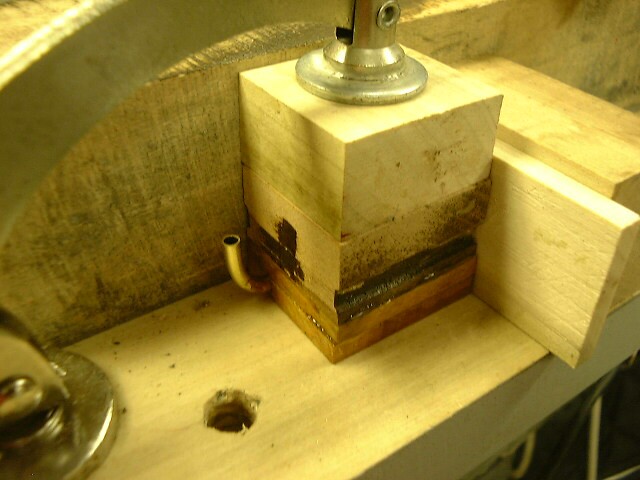

This shows one block being clamped

---

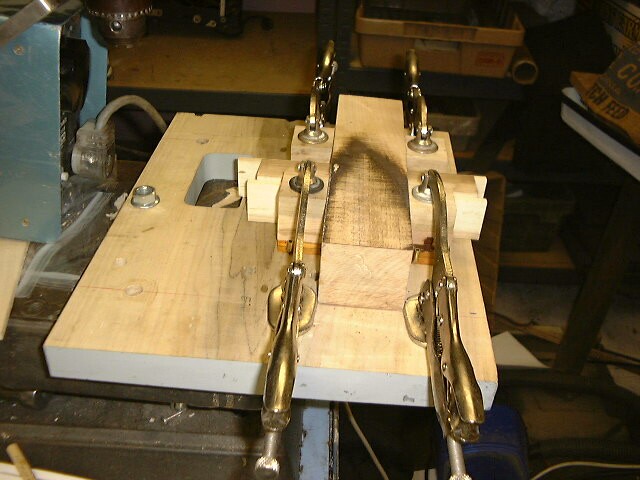

Clamping of four blocks

---

Another view of four blocks being clamped.

---

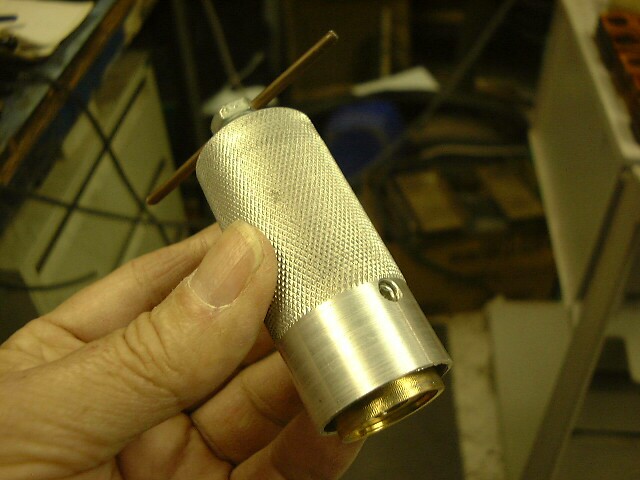

Tool made for inserting the valve seat into the wood block.  By adjusting the handle on the top you
can change the depth for the correct valve play.  This has to be individualed done on each valve..

---

Ready to insert the valve seat into the block.  Note space between tool and wood.

---

Using a gentle pressure, the valve seat is pushed in to the correct depth..

---
